Copper pipe in insulation HALCOR

In today’s world, efficiency, reliability, and speed of installation are key factors for success in the field of air conditioning, refrigeration, and heat pumps. That’s why we are proud to introduce the line of pre-insulated copper tubes TALOS® ACR ECUTHERM™ and TALOS® ACR ECUTHERM II™ from the global leader Halcor (Greece) – an innovative solution for professionals.

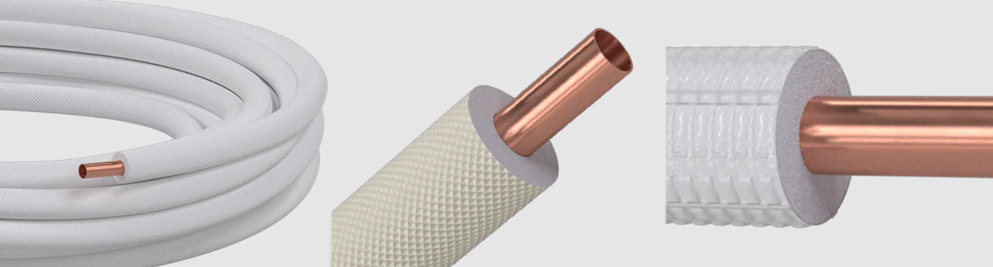

TALOS® ACR ECUTHERM™: Durability and Energy Efficiency

This product line combines exceptional durability with high energy efficiency. It is designed with advanced PEX (cross-linked polyethylene) insulation technology, which provides unmatched performance and significant energy savings throughout the system’s lifespan.

Key advantages of the ECUTHERM™ series:

• Outstanding thermal insulation properties: Thanks to high-quality insulation, the tube minimizes heat loss and prevents condensation, leading to a significant reduction in energy consumption.

• Exceptional strength and durability: PEX insulation, combined with high-quality copper, guarantees long-lasting and uninterrupted system operation.

• Resistance to moisture and chemicals: The insulation material excellently withstands the effects of moisture and aggressive chemicals, making ECUTHERM™ an ideal choice for challenging operating conditions.

Applications of TALOS® ACR ECUTHERM™:

• Refrigeration systems
• Air conditioning systems
• Heat pumps

Copper tube material:

The tubes are made of high-quality phosphorus-deoxidized copper (Cu-DHP) with a maximum copper content of 99.90% and a controlled phosphorus content of Ρ=0.015% – 0.040%. This ensures its high purity and resistance to working with various refrigerants.

Compliance with standards and quality marking:

The product meets the strict requirements of the refrigeration tube standard EN 12735-1 and has prestigious quality marks from AENOR, TÜV, GL, VIK, which confirms its world-class status.

Available sizes of TALOS® ACR ECUTHERM™ tubes:

• 1/4’’ (6.35 mm)
• 3/8’’ (9.52 mm)
• 1/2’’ (12.7 mm)
• 5/8’’ (15.88 mm)

The insulation thickness for these tubes can be 6 mm or 9 mm, providing an optimal level of thermal insulation for various conditions.

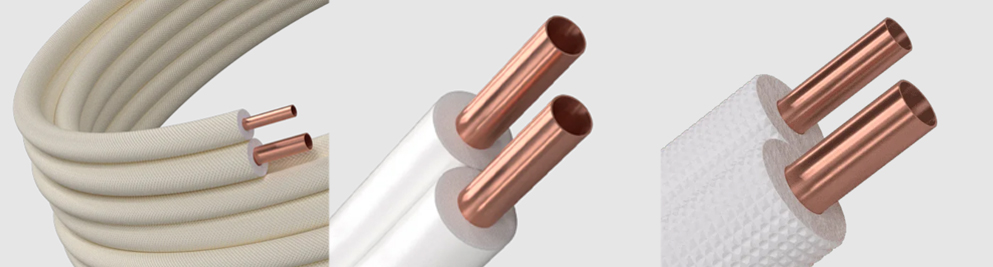

TALOS® ACR ECUTHERM II™: An Innovative Pair for Professional Installation!

TALOS® ACR ECUTHERM II™ is a step forward in convenience and installation efficiency. These copper tubes are manufactured as pairs that are tightly connected along their entire length. This innovative format creates a single installation unit, providing significant advantages for professionals:

• Minimization of heat loss: Thanks to integrated insulation and a tight fit, heat exchange between the tubes and the surrounding environment is minimized.

• Quick laying without additional fasteners: The paired design significantly speeds up installation, eliminating the need for separate fastening of two tubes. This saves you time and labor costs.

• Neat, professional appearance: The finished system looks aesthetically pleasing and professional, which is important for any site.

Applications of TALOS® ACR ECUTHERM II™

• Air conditioning systems
• Refrigeration systems

Copper tube material and quality:

Similarly to the ECUTHERM™ series, ECUTHERM II™ tubes are made of high-quality phosphorus-deoxidized copper (DHP-Cu) with a maximum copper content of 99.90% and a controlled phosphorus content of Ρ=0.015% – 0.040%. It also complies with the refrigeration tube standard EN 12735-1 and has the quality marks AENOR, TÜV, GL, VIK.

Available sizes of paired TALOS® ACR ECUTHERM II™ tubes:

• 1/4" + 3/8" (6.35 mm + 9.52 mm)
• 3/8" + 5/8" (9.52 mm + 15.88 mm)

The insulation thickness for these tubes is 9 mm, providing an optimal level of thermal insulation.

By choosing pre-insulated copper tubes from Halcor, you get a new generation of efficiency and convenience. This is a high-quality and reliable material that will not only ensure the flawless operation of your systems but also significantly save you time and money on installation.
